Mazda MX5 MK4 Luggage Rack

Welcome to Carluggagerack, luggage racks are all we ‘do’ and have done since 2008. If you are looking for a Mazda MX5 Mk4 luggage rack, you are in the right place. We are a family run business based near Silverstone UK, we also have an office & warehouse partner in Rotterdam Netherlands to serve our EU customers customs & tariff free.


We have two solutions for the Mazda MX5 MK4:

  1. Revo-Rack the worlds only clamp less rack, it attaches using vacuum cup technology no metal clamps that damage paintwork, vital with the 2.7mm panel gap on the MK4 and its aluminium boot lid.
  2. The innovative boot-bag luggage bag system, extra space without a rack hand made by us in Bucks since 2008.

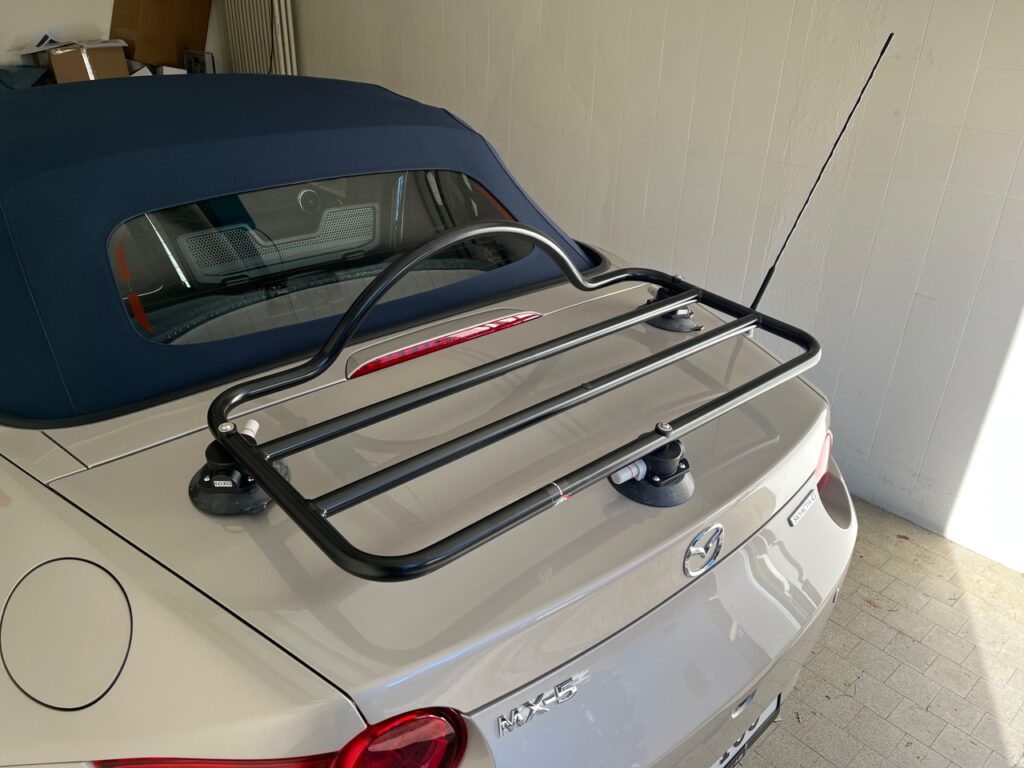

Revo-Rack for Mazda MX5 MK4





black mazda mx5 mk4 nd with a revo-rack luggage rack fitted carrying a large yellow north face holdall
Revo-Rack Mazda MX5 MK4 Luggage Rack, no metal clamps on fragile boot lid edges, certified to carry 20kg, assembled in the UK. Shipped in 48hrs.

Black Model £349.95 / 369.95€ / $409
Polished Anodised Model £439.95 / 439.95€ / $489

The innovative Revo-Rack has been manufactured by us since 2016 it is made from 25mm T5 Aluminium & Magnesium tube and thus the frame only weighs 1.7kg. The design of this rack allows it to fit in under 90 seconds, no bolts, no brackets, no straps, no hassle & no paint damage : ever. We manufacture the rack in either a polished anodised finish which is similar to chrome, or a version that's powder coated black.

With all the effort Mazda puts into making the Mx5 light a heavy stainless rack seem to be missing the point.  The panel gap on the MK4 is 2.7mm ( photo below ) Revo-Rack was developed to overcome the fact that a conventional luggage rack with clamps does not realistically have enough room to fit without significant risk of a dent or paint damage.

Revo-Rack attaches to your Mx5 MK4 using vacuum cup technology, these are not suction cups. Suction is what creates vacuum. Vacuum is the total absence of air whereas suction is the process done to achieve a vacuum. The grey buttons on the side of the cups pump out the air creating a huge, securing force.

In 2015 Revo-Rack was independently certified by TUV Italy part of the global TUV testing and certification business. It went through speed, braking and force tests, to ISO 11154:2006 Revo-Rack passed all these tests and is certified to carry 20kg/45lbs. Since 2016 we have sold over 10,000 Revo-Racks and never had a failure.

Please see what our customers think of the Revo-Rack

We are of course aware that Mazda suggests a maximum load of 10kg for their carbon fibre rack on the MK4/ND because of the cars aluminium boot lid. Like a conventional rack, this clamps on with weight spread over the very small area of 20cm².The footprint of the clamps on the edge of the boot/trunk lid.

With a Revo-Rack the load is spread over a much greater area over 300cm² The footprint of the vacuum cups.Hence the Revo-Rack can carry a greater load of 20kg/45lbs with no risk of damage to the boot/trunk lid. Think of this like standing or a frozen lake or skimming across it on your belly. One will cause thin ice to crack the other won’t

Why a Revo-Rack ?

  • Rack Frame Measures 900x 420mm
  • Sits 75mm off the boot lid
  • No fiddly metal brackets to tighten
  • No metal clamps or straps that will at some point damage paintwork
  • No 3M paint protection stickers ( great on the first use but after that ? )
  • The easiest luggage rack in the world to install.
  • Perfect for the 2.7mm panel gaps on the MK4
  • Can be fitted with the hoop at rear or front of boot lid
  • Certified to carry 20kg
  • Fitted in seconds without tools
  • Independently tested to ISO 11154 PAS 2006 - Road vehicles roof carriers.
  • Over 10,000 sold since 2016 : tried & tested



white mazda mx5 mk3 with a revo-rack black luggage rack fitted
Revo-Rack Black, developed for the MK4 as big as we can make it for the MK4's boot lid.
blue mazda mx5 mk4 nd with a revo-rack pa luggage rack fitted photographed from the side
Revo-Rack PA is hand polished and anodised for a deep shine
white mazda mx5 with a black hood and a revo-rack black luggage rack fitted on a rainy day
All Revo-Rack frames are made from T5 aluminium tubing and weigh 1.67kg with the effort Mazda went too, to keep weight down on the MK4 a heavy stainless rack seems to be missing the point as far as we can see !
blue mazda mx5 mk4 with a black luggage rack fitted photographed from the rear outside a white house
If your MX5 MK4 / ND has a rear spoiler the Revo-Rack reduced depth model will still fit no problem



mazda mx5 mk4 with a revo-rack pa luggage rack fitted
No metal clamps on the fragile aluminium boot lid edges means no paint damage.
red mx5 mk4 with a chrome luggage rack fitted photographed from behind
Independently certified and tested to carry 20kg.
white mazda mx5 nd mk4 with a revo-rack black luggage rack fitted carrying a red holdall parked opposite a lake roof down
Enjoyed by customers since 2016
A 2.7mm panel gap not enough room for a metal clamp without the risk of paint damage or worse a dent !
There is no room for a metal clamp on the MK4 / ND
black mazda mx5 mk4 miata nd with a black luggage rack fitted
Fitted in 90 seconds no fiddly clamps or brackets to tighten
red mazda mx5 mk4 on a Corsica mountain road roof down with a revo-rack luggage rack fitted carrying a grey bag
Revo-Racks go on some great road trips : ' Hi, Just to let you know - the Revo-Rack is just fine. I’ve just completed three weeks to/from Corsica via Italy – 4300 km. Thanks.Paul Belgium 12.7.19'
white mazxda mx5 mk4 with a revo-rack luggage rack fitted with a large blue holdall on it
We ship globally : ' Hello We have just completed our second long road trip with the Revo-Rack on the MX5. This time we did 3800km mostly at freeway speeds but also plenty of curvy roads.The rack held fast in all the wind blasts and lots of lateral forces. Top up or top down there was never a worry with the rack and luggage. We could not be happier with our purchase. Murray and Lindy Melbourne Australia 23.10.18'
Revo-Rack being TUV certified, here being subjected to a lifting force of 650 newtons, a test it passed !
Soft rubber cannot mark or chip paint















Purchase the Revo-Rack here -


The Mazda MX5 MK4 Luggage Rack Evolved ?  Boot-bag



Orange mazda mx5 mk4 with a boot-bag luggage rack fitted on a scottish country road with the roof down overlooking hills
Boot-bag hand made by us in Buckinghamshire since 2008, soft pad under the bag protects paint.

The innovative boot-bag also fits all MX5 models, its a great alternative to the traditional Mazda Mx5 luggage rack. Boot-bag has been manufactured in the UK by the boot-bag group since 2008 with over 25,000 sold worldwide. The straps simply loop around your MX'5's boot lid negating the need for a rack. If you buy a car luggage rack you still need to purchase a waterproof luggage bag. Boot-bag does both jobs for half the cost of a rack alone.

Why a boot-bag instead of a traditional Mazda Mx5 MK4 luggage rack ?

  • Fully Waterproof & Hand Made In The UK
  • Attaches using soft webbing so no damage to paint
  • Sits on a soft fabric non slip mat
  • 14 day no quibble money back guarantee.
  • Folds flat for easy storage, can be removed in minutes and stored inside if you stop.
  • Saves Money ; half the price of a rack and waterproof holdall/suitcase

There are two sizes in the boot-bag range :

original  - £124.95 / 144.95€ / $161.95  - 50 Litres of additional luggage capacity  measures 70x36x20cm ( 28"x15"x8") giving 50 litres (1.75 cubic feet) of additional storage. The soft non slip mat the bag sits on is slightly bigger measuring 80x40cm.

vacation - £154.95  / 174.95€ / $194.95 - 75 Litres of additional luggage capacity, 50% larger than the boot-bag original measuring 90x40x20cm.(36"x16"x8")  The soft mat measures 90x45cm.

light metallic blue mazda mx5 mk4 with a boot-bag original luggage rack fitted in a mazda delaership
Boot-bag original adds 50 litres of extra luggage space to your MX5 MK4
Rear view of a mazda mx5 mk4 with a boot-bag luggage rack fitted
All boot-bags are 20cm high
rear view of a blue mx5 nd mk4 with a boot-bag luggage bag fitted
Boot-bags are fully waterproof, made by us since 2008.
side view of a blue mx5 mk4 with a boot-bag luggage rack fitted
Once pulled tight the straps don't move and rub the boot edges 13 years of boot-bag sales prove this !



30th anniversary mx5 mk4 with a boot-bag vacation luggage rack fitted
boot-bag vacation adds a huge 75L of extra space to your MX5 MK4
aerial view of a boot-bag vacation fitted to a orange mk4 mx5
All boot-bags sit on soft anti slip fabric matting
rear view of a orange 30th edition mazda mx5 mk4 with a boot-bag vacation fitted
Boot-bag vacation measures 90x40cm x 20cm high.







orange mazda mx5 mk4 nd roof down on scottish mountain road with a luggage rack fitted
380 miles to the Scottish Highlands not moved an inch and paintwork not affected. Edward UK 16.8.20





Mazda MX5 MK4 Luggage Rack The boot-bag :-

Stage one lay out the three straps in an H shape
Stage 2 place the soft anti slip fabric matting onto clean paintwork
Attach the 6 ends of the straps to the bag and pull tight, they just loop around the boot lid.

Purchase the boot-bag here -

12 years of evolution boot-bag the details - little things are important.

All boot-bags are hand made by us in the UK
close up of a boot-bag luggage rack
boot-bags have a velcro flap over the zip to prevent water entering the bag through the zip
aerial view of a boot-bag original luggage rack
Boot-bags have a fully adjustable strap system, all points join onto circles that are welded onto the bag, no sewing as this creates holes for water ingress.
view of a boot-bag luggage rack base
boot-bags have a soft base no hooks or studs to mark paint
close up detail of the straps on a boot-bag luggage rack
The straps attach using ladder-lock fixings once pulled tight, they stay tight.
boot-bag luggage rack third brake light
We make an optional third brake light if the bag obscures it
boot-bag vacation and original luggage racks side by side
boot-bag original 50 litre bag and the larger vacation 75 litre model.
All boot-bags are supplied with this soft fabric anti slip matting to protect paint.
